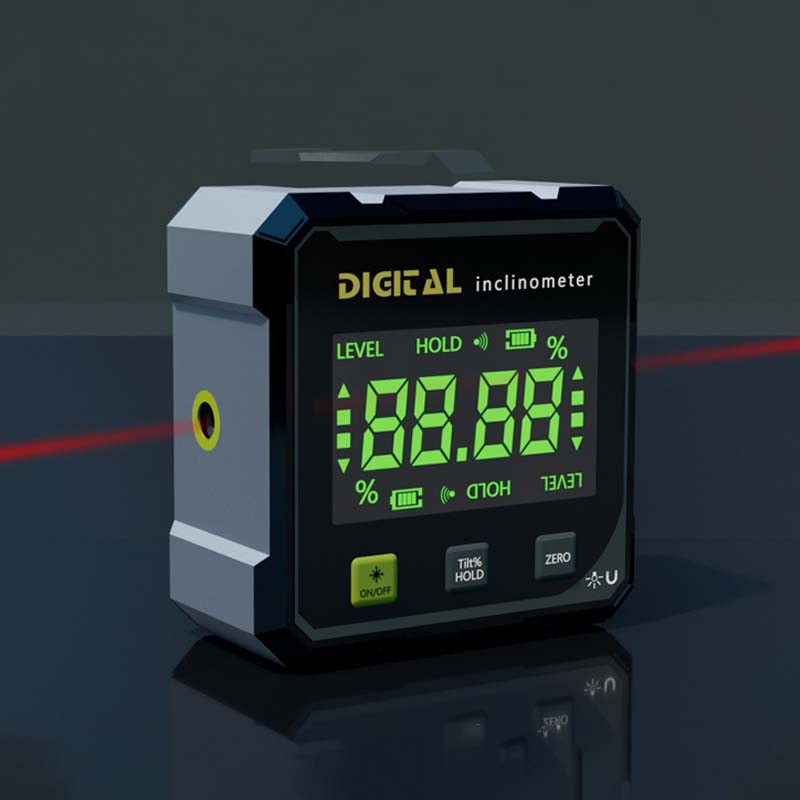

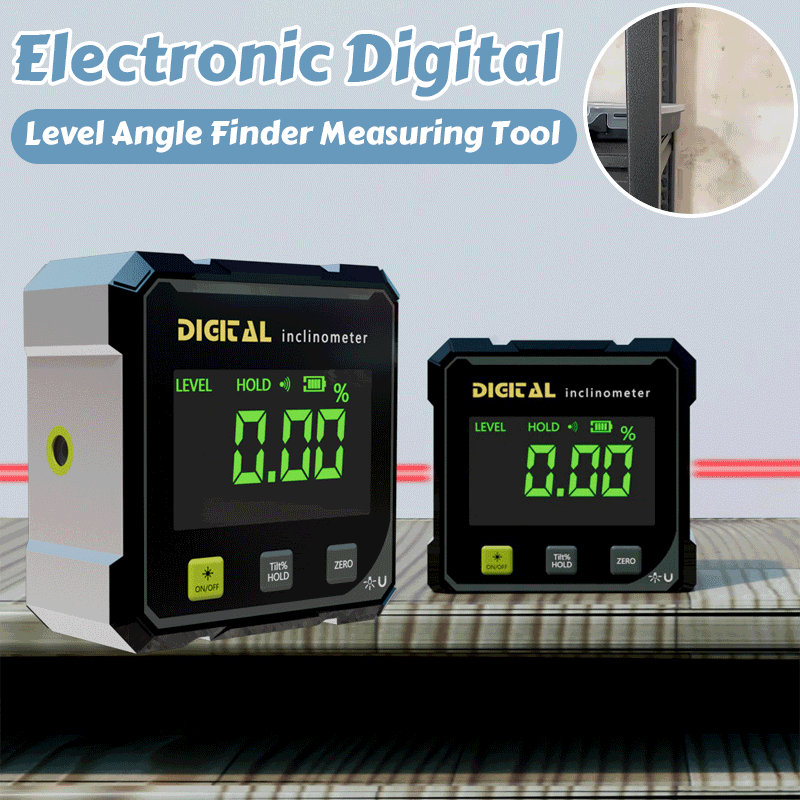

Electronic Digital Level Angle Finder Measuring Tool

This electronic level meter integrates strong magnetic adsorption, laser positioning and digital measurement, 0.1° high precision display, 1 laser-assisted leveling.IP54 waterproof and dustproof, LED backlight night vision, easy to cope with the needs of renovation, engineering and other full-scene accurate measurement!

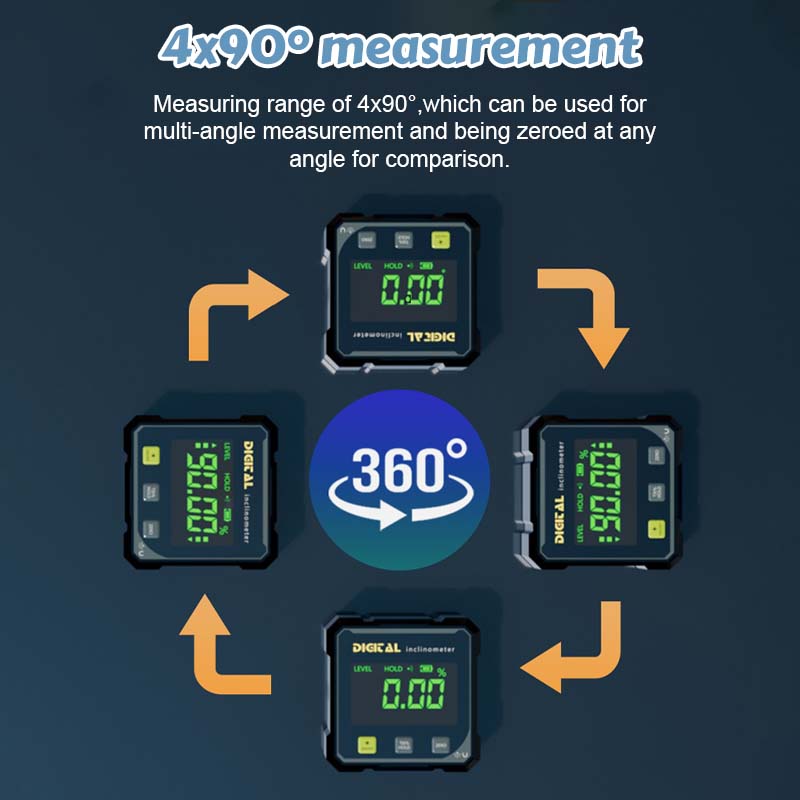

4x90° measurement

Measuring range of 4x90°,which can be used for multi-angle measurement and being zeroed at any angle for comparison. Angle finder measurement accuracy: ±0.1 degrees at 0 and 90 degrees and ±0.2.

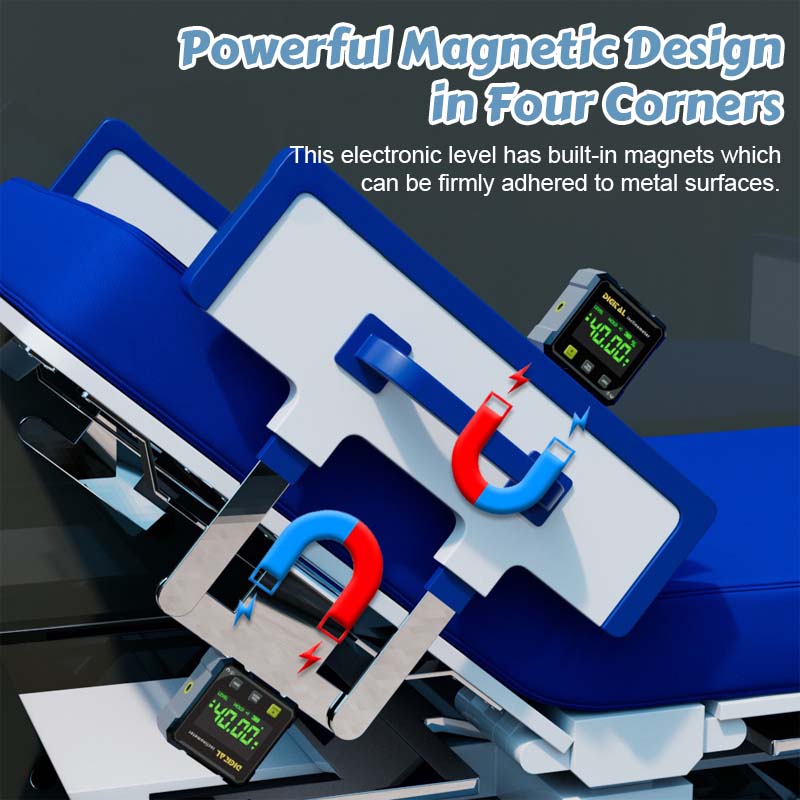

Powerful Magnetic Design in Four Corners

This electronic level has built-in magnets which can be firmly adhered to metal surfaces.The V-shaped groove design fits perfectly on pipes/steel, freeing your hands to measure accurately, and is especially safe and reliable when working at heights.

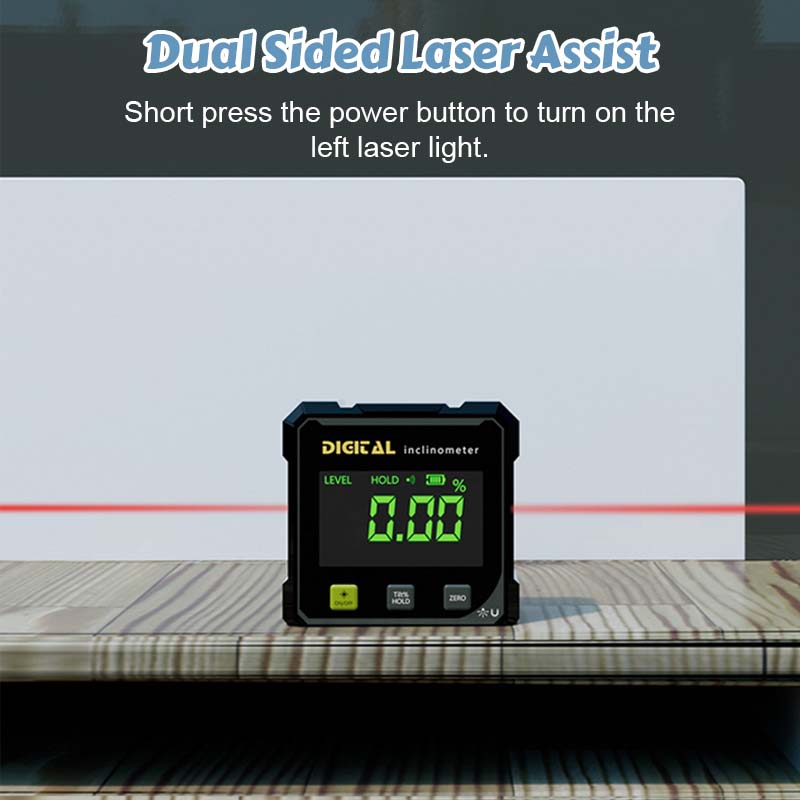

Dual Sided Laser Assist

Short press the power button to turn on the left laser light. Short press the power button to turn on the left laser light. When both laser lights are on, short press the power button to turn off. Clearly visible under bright light environment, easy to complete the wall alignment, tiling and other fine work that requires a datum line.

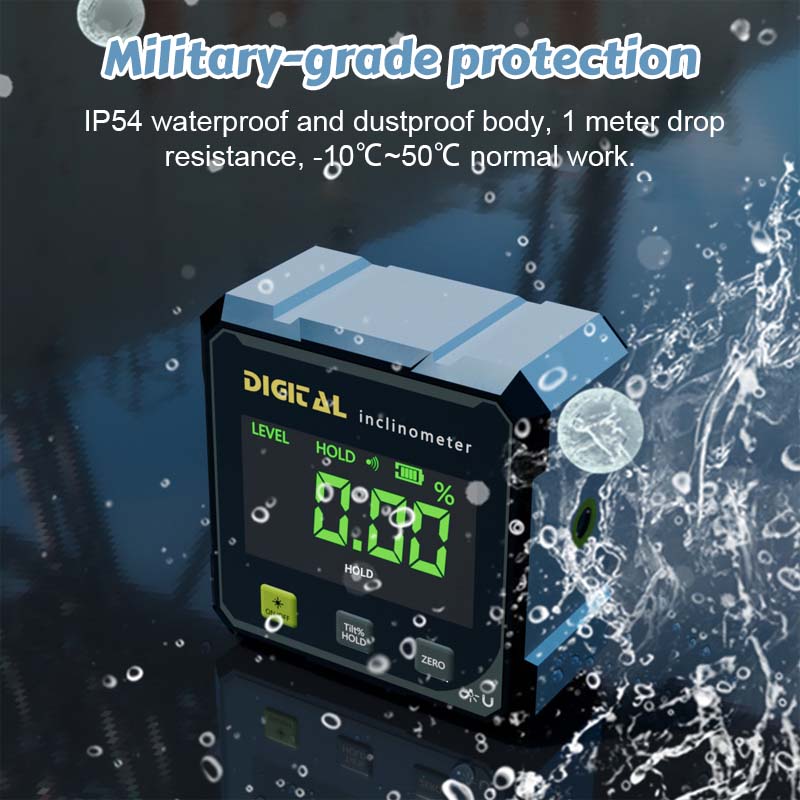

Military-grade protection

IP54 waterproof and dustproof body, 1 meter drop resistance, -10℃~50℃ normal work. Sealed keys anti-sweat and anti-oil stains, the laser window is made of tempered glass, site dust/rain outdoor use are no pressure, life expectancy of 50,000 hours.

Intelligent LED backlight system

light sensor automatically adjusts the brightness of the backlight, dark environment to start the high brightness mode. 0.1 ° precision digital display, switchable ° / % of the two units, ± 90 ° range with beeping prompts, blind operation can also be accurate leveling.

Multi-tasking adaptable

Magnetic surface is compatible with steel structure installation, laser surface is suitable for carpentry decoration, rubber mat surface to deal with non-metal surfaces such as tiles, one machine to cover the needs of plumbers, electricians/carpenters/engineers.

Specifications

Measuring range: 4x90°(i.e. 360 degree omni-directional)

Resolution: 0.05

Accuracy: 0.2~0.5°

Repeatability: 0.19

Product dimensions: 61x31x61mm(LxWxH)

Operating temperature: -10°C~50°C

Laser range:deviation of one meter, plus or minus three millimeters
